Universal Testing Machine

Universal Testing Machine

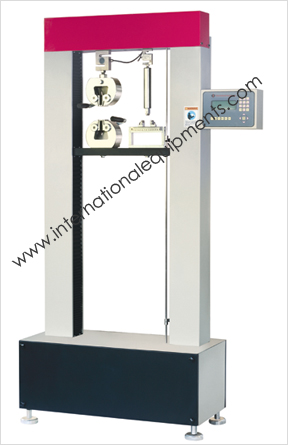

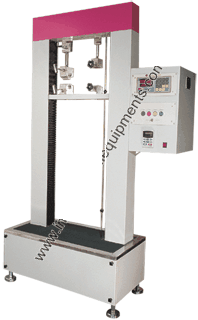

Computerized Twin Screw Universal Testing Machine To Determine Properties Of Tensile & Elongation As Per Astm D 638 & Compression As Per Astm D 695 With Auto Stop, Auto Reverse Facility & Direct Display Of Result Through 32 Bit Micro Controller Having 4 Lines And 20 Character Display.

To check the tensile, elongation, creeping, ring stiffness and compression on plastic pipes such as • High density polyethylene (HDPE), Polyvinyl chloride (PVC), RPVC, CPVC, Polypropylene, Polypropylene-R, • Medium Density poly ethylene (MDPE) in the form of dumb bells, rings and full pipe longitudinal section.

Specification :

Load capacity Various different capacities can be offered up to 5000 kg.
No. of load cel Optional One or Two.
Cross Travel up to 1000 mm
Horizontal day light 450mm
Speed Variable between 1.33mm/minute to 500mm/minute.
Paint Powder coated
Power 230 Volts, 50Hz, single phase

This system has a multi-step speed facility where by you can set three variable settable speeds forward Test speed, reverse fast speed and reverse slow approach speed.

Direct Display Through Microcontroller

Numeric test report consisting values of Peak load, Break load, Elongation at peak load, Elongation at break load, Tensile strength at peak load, Tensile strength at break load, % elongation at peak load, % elongation at break load, Young’s modulus, Secant modulus for flexural at selectable % strain values, Flexural Stress, Specimen width, Thickness, Gauge length, Set over travel and set over load could be viewed on the micro-controller and printout could be obtained by directly attaching a dot matrix printer to the machine.

Graphic Display And Printout Through Pc

In addition to the above reports, further values like Young’s modulus, Yield stress, Yield point, Flexural stress, Flexural modulus, Standard deviation, Intermediate result and Load Vs Elongation graph could be obtained by attaching a printer to the PC.

Through the pc this will be a multi unit display as well as printout where by the operational units would be kg, cm, pound, inch, newton & mm for conversions in any combination.
