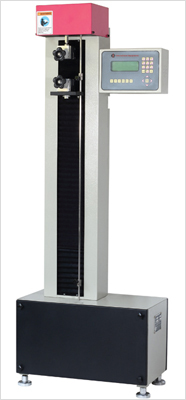

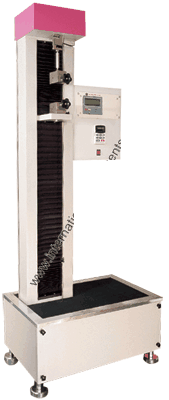

Tensile Testing Machine

To check the tensile, elongation, creeping, ring stiffness and compression on plastic pipes • such as High density polyethylene (HDPE), Polyvinyl chloride (PVC), RPVC, CPVC, Polypropylene, • Polypropylene-R, Medium Density poly ethylene (MDPE) in the form of dumb bells.

to determine properties of tensile and longation as per ASTM D - 638 / ASTM D – 882 of plastics – Eco version.

Specification :

Load capacity Different Load cell options such as 34 kg, 50 kg, 100 kg, 225 kg.
No. of load cel One
Cross Travel Up to 1000mm
Speed Variable between 10mm/minute to 500mm/minute.
Paint Powder coated.
Power Powder coated
Power 230 Volts, 50Hz, single phase.

* Equipment with other capacities could also be supplied as per the requirement.

Melt flow index tester

Direct Display Through Microcontroller

Numeric test report consisting values of Peak load, Break load, Elongation at peak load, Elongation at break load, Tensile strength at peak load, Tensile strength at break load, % elongation at peak load, % elongation at break load, Young’s modulus, Secant modulus for flexural at selectable % strain values, Flexural Stress, Specimen width, Thickness, Gauge length, Set over travel and set over load could be viewed on the micro-controller and printout could be obtained by directly attaching a dot matrix printer to the machine.

Graphic Display And Printout Through Pc

In addition to the above reports, further values like Young’s modulus, Yield stress, Yield point, Standard deviation, Intermediate result and Load Vs Elongation graph could be obtained by attaching a printer to the PC.

Through the pc this will be a multi unit display as well as printout where by the operational units would be kg, cm, pound, inch, newton & mm for conversions in any combination.
