VSP / HDT Apparatus

Computerized VSP / HDT Apparatus

as per ASTM D – 1525 and ASTM D - 648 to determine vicat softening temperature and heat deflection temperature of plastics.

Specification :
Temperature range : From ambient to 300C.
No of stations : Two.
Material of construction : Inner bath: S.S
Outer body: M.S
Rate of heating : 120C / hour and 50C / hour.
Sensor : Range upto 10mm with resolution of 0.01mm.
Weights : A set of weights ranging from 5 grams to 2000 grams would be supplied for incremental loads.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Graphic display and printout through PC: Penetration/Deflection Vs Temperature graph and numeric reports consisting values of vicat softening temperature and heat deflection temperature could be obtained by attaching a printer to the PC.

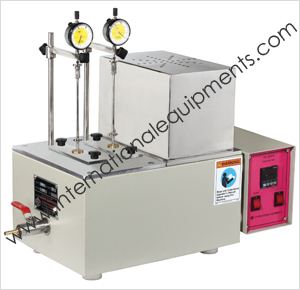

Analogue VSP / HDT Apparatus

as per ASTM D – 1525 and ASTM D – 648 to determine vicat softening temperature and heat deflection temperature of plastics.

Specification :
Temperature range : From ambient to 300C.
No of stations : Two.
Material of construction : Inner bath: S.S
Outer body: M.S
Rate of heating : 120C / hour and 50C / hour.
Dial gauge : Range upto 10mm with resolution of 0.01mm.
Weights : A set of weights ranging from 5grams to 2000grams would be supplied for incremental loads.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.
