Melt Flow Index Tester

Melt Flow Index Tester

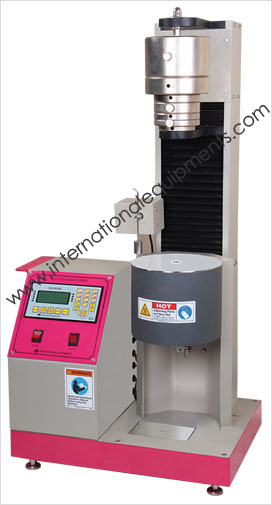

Computerized Melt flow index tester as per ASTM D 1238 & ISO 1133 (Test Method A & B )
to check flow rate of pipes such as PVC, PPR, HDPE, MDPE in the form of raw material (granules) as well as by cutting small pellets from the pipe directly.

Specification :
Temperature controller:
Micro processor based PID controller with temperature range from ambient to 400ºC, resolution of 0.1ºC and accuracy of + 0.1ºC.
Timer : Digital presettable with a range up to 59 minutes, 59 seconds.
Sample cutting: Auto [Motorized]
Weights : 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.

* Standard accessories includes Orifice, Piston, Spoon, Spanner, Plumb line, Funnel, Material charger, Mirror, Tweezer, Orifice cleaner, Barrel cleaner, Sample cutter and Accessory stand.

MFI Tester For Film Testing (KAYJAY/ 2005/CE)

Specification:

Temperature controller : Micro processor based auto tuned PID controller with temperature range from ambient to 400ºC, resolution of 0.1ºC and accuracy of + 0.1ºC.

Timer : Digital presettable with a range up to 999 seconds and having buzzer output.
Sample cutting : Manual.
Weights : 2.16 kg & 5 kg.
Accessories : Standard accessories*
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.

Standard accessories includes Orifice, Piston, Spoon, Spanner, Plumb line, Funnel, Material charger, Mirror, Tweezer, Orifice cleaner, Barrel cleaner, Sample cutter and Accessory stand.

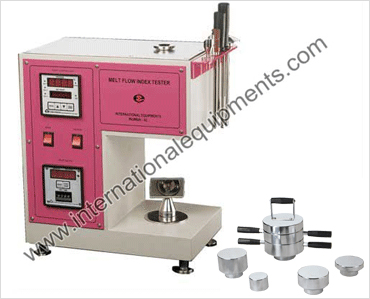

Melt Flow Index Tester For Polymer Testing (KAYJAY/1994/L)

Specification:

Temperature controller :Micro processor based PID controller with temperature range from ambient to 375C, resolution of 0.1C and accuracy of + 0.1C.

Timer :Digital presettable with a range up to 59 minutes, 59 seconds and having buzzer output.
Sample cutting : Manual.
Weights: 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg.
Accessories : Standard accessories *
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.


Computerized Melt flow index tester ASTM D 1238 & ISO 1133 – (Test Method A)

Specification:
Microcontroller with alpha numeric key pad having built-in temperature controller with temperature range up to 400 degree centigrade, resolution of 0.1 degree Centigrade and accuracy of +/- 0.1 degree Centigrade similarly built-in timer with range 999.9 seconds.

Specimen cutting : Motorized.
Specimen Weighing : Automatic up to 60 gm and resolution of
1 mg.
Weight : 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg hard chrome plated Weights.
Digital Display : Individual MFI result with average results facility.


PC output : Through serial port with Window 7 compatible software.
Accessories : Standard accessories*.
Paint : Powder Coated.
Power Supply : 230 Volts, 50 Hz, Single Phase.

Standard accessories includes Orifice, Piston, Spoon, Spanner, Plumb line, Funnel, Material charger, Mirror, Tweezer, Orifice cleaner, Barrel cleaner, Sample cutter and Accessory stand.
